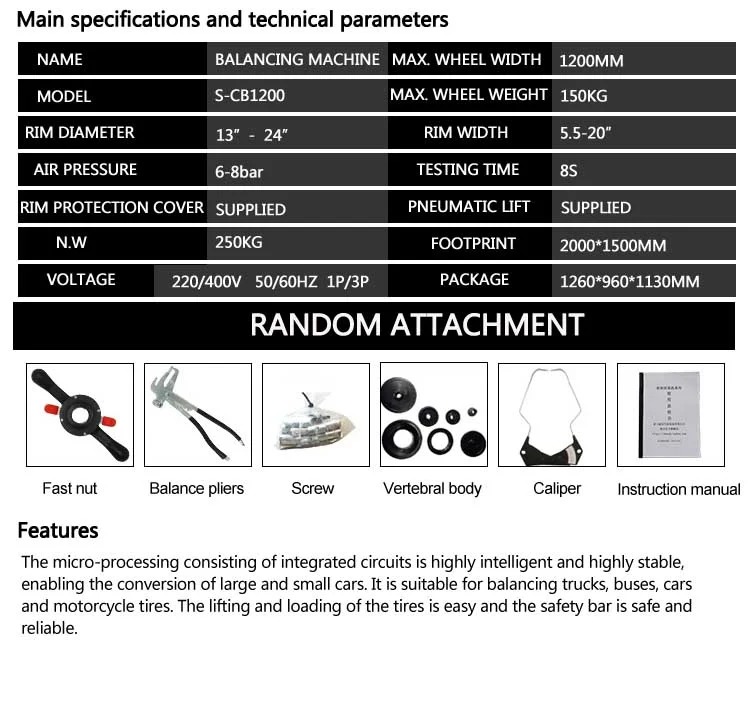

Wheel Balancer Machine CB1200 parameter
| Model | CB1200 |
| Rim diameter | 13″-24″ |
| Rim diameter | 5.5~20″ |
| Max. wheel weight | 1200 mm |
| Air pressure | 6~8 bar |
| Testing Time | 8s |
| Protection cover | supplied |
| Overall dimensions approx | 2000×15000 mm |
| Standard Accessories | International Universal standard flange tapering (diameter range 40~285mm)
wheel width callipers, lock nut wheel ballast weight pliers |
| Power | 400V/220 optional |
| Net weight | 250 kg |
| Gross Weight | 320 kg |
| Outside Dimension L*W*Hmm | 126x96x113CM |

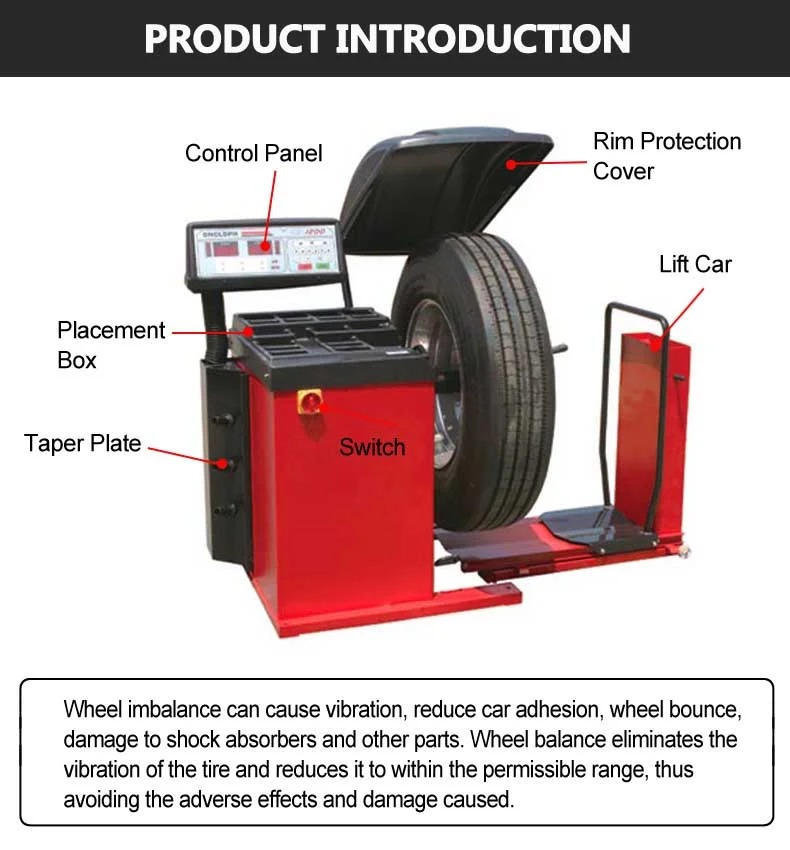

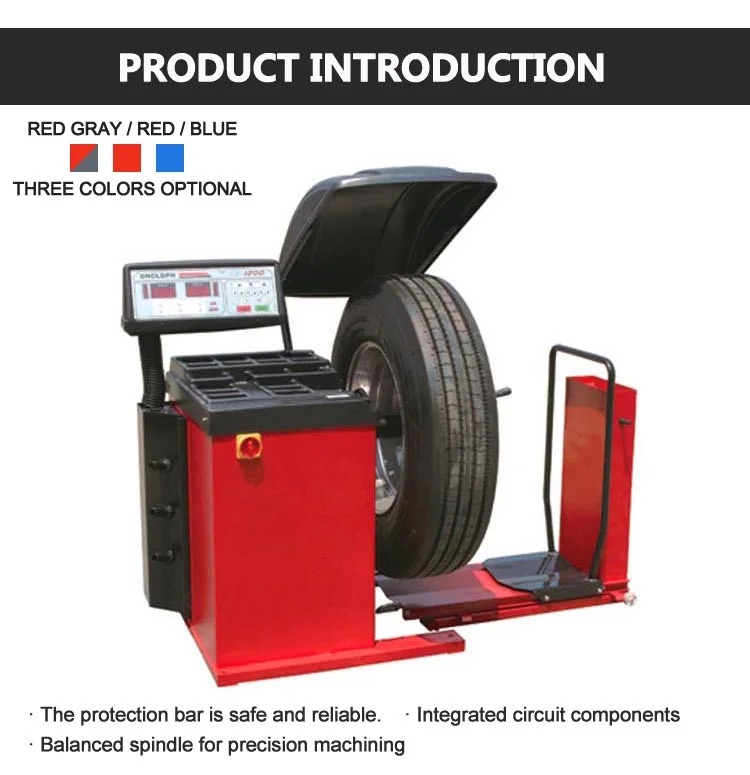

Wheel Balancers CB1200 PRODUCTS INTRODUCTION

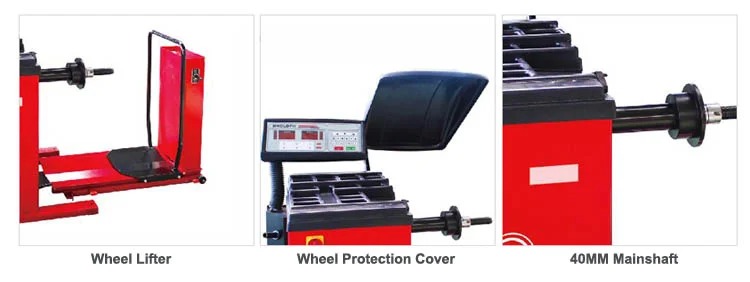

· Easy operation of lifting device and mount-demount tyre with protection cover, well-considered safety and stability.
· The microprocessor is composed of an integrated circuit with high capacity and high stability and can realise the converting of big or small model wheels, suitable for trucks, buses, cars and motorcycle wheels.

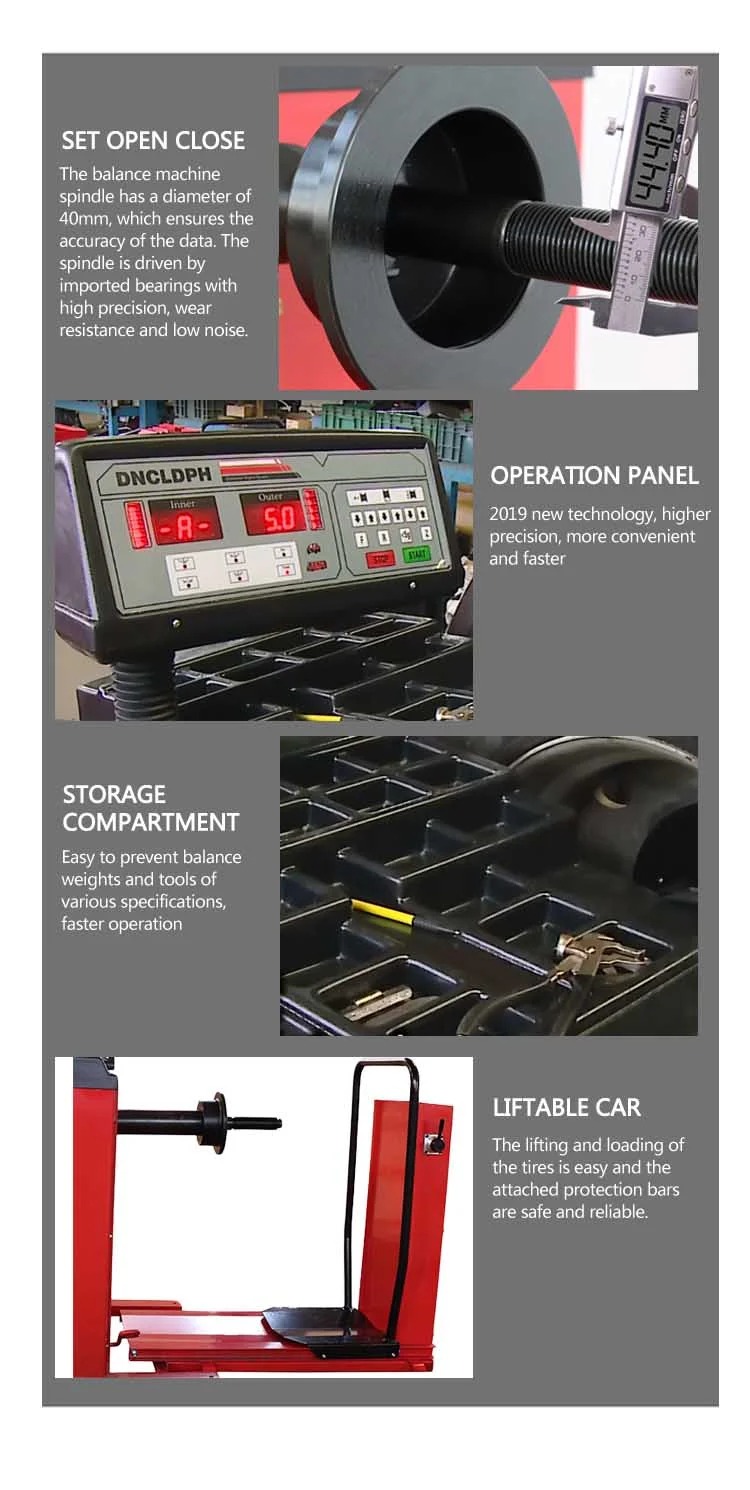

· High-precision tyre balance operation thanks to its precise balancing spindle specially designed for balancing tyre with big rim hole
Wheel Balancers CB1200 DIMENSIONS
Model：CB1200
Gross Weight (kg): 320
Outside Dimension L×W×H (mm): 1260×960×1130
